Specification of Samadhi-Lab fins
|
Name |

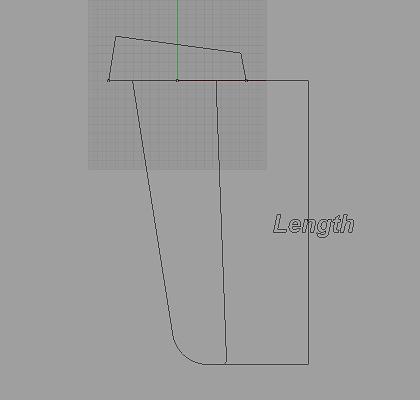

length(cm) |
Matching sail area(m^2) |

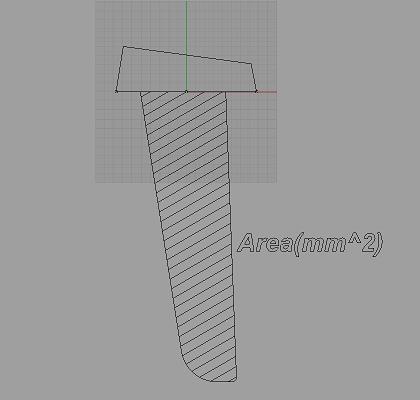

Area(mm^2) |

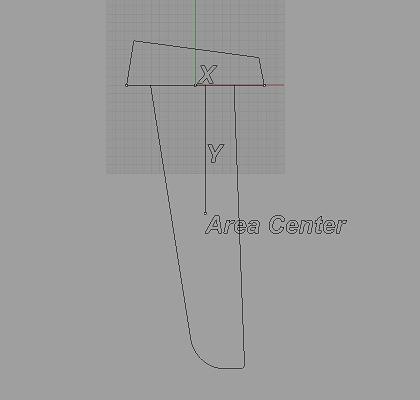

Area Center( X, Y ) |

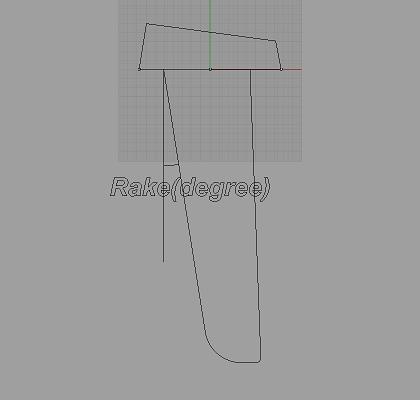

Rake(degree) |
Weight(g) |
Remarks |
 |

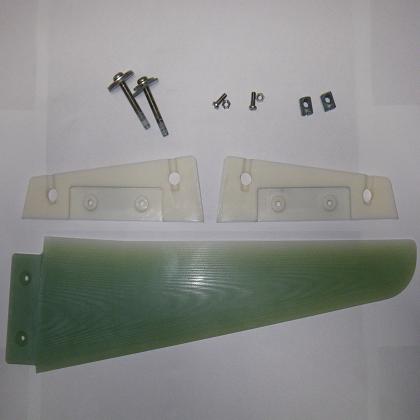

X01 32 |
32 |
～5.8 |
22048 |
(18.4,136.1) |
12.8 |
299 |
Test End |
 |

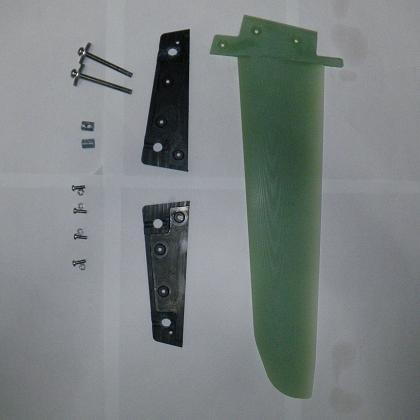

X02 36 |
36 |
6.5～7.6 |
27367 |
(23.3,162.3) |
9.0 |
412 |
Now Testing |
 |

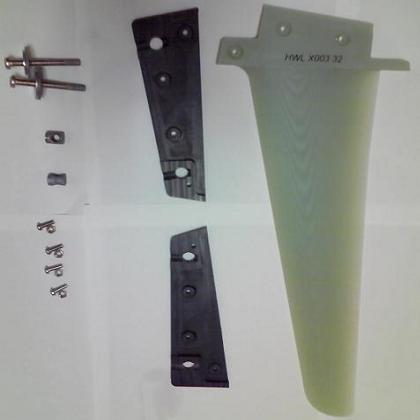

X003 32 |
32 |
5.4～6.3 |
22076 |
(18.3,135.9) |
12.8 |
323 |
Test End |
 |

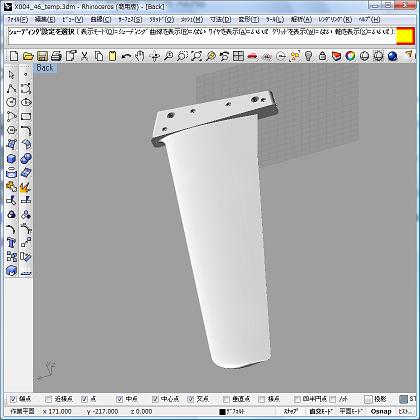

X004 46 |
46 |
8.4～9.8 |
41600 |
(12.6,210.0) |
7.7 |
624 |
Now Testing |
 |

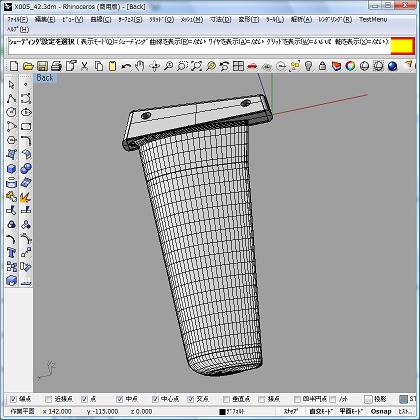

X005 42 |
42 |
7.6～9.0 |
38746 |
(11.2,193.4) |
7.7 |
596 |
Designed |
 |

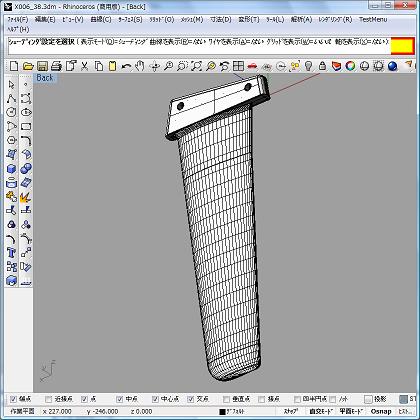

X006 38 |
38 |
7.2～8.6 |
35745 |
(9.7,176.3) |
7.7 |
566 |
Designed |
 |

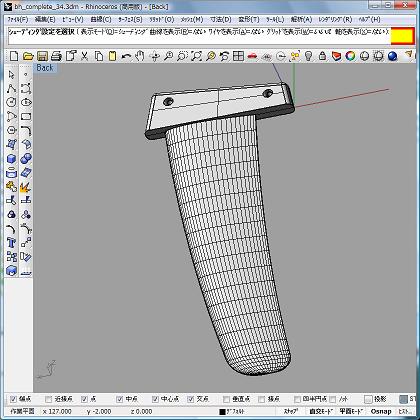

X007 34 |
34 |
6.0～7.2 |
26650 |
(10.88,156.6) |
7.2 |
445 |
Designed |
 |

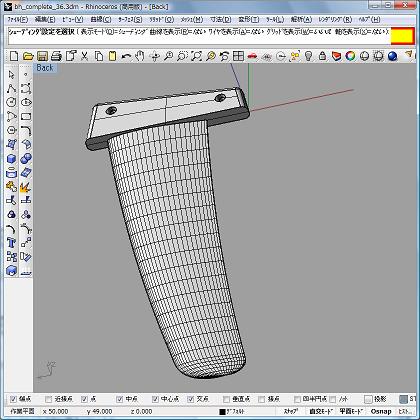

X008 36 |
36 |
6.6～7.8 |
28298 |
(11.3,165.9) |
7.0 |
465 |
Designed |
 |
X009 38 |
38 |
7.2～8.4 |
30506 |
(12.1,171.5) |
6.8 |
500 |
Designed |
 |

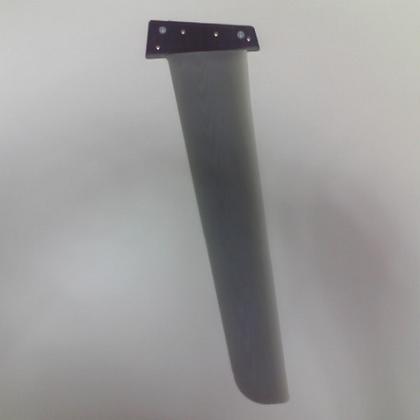

X010 |
46 |
7.8～9.0 |
38380 |
(22.9,208.3) |
7.7 |
586 |
Now Testing |
 |

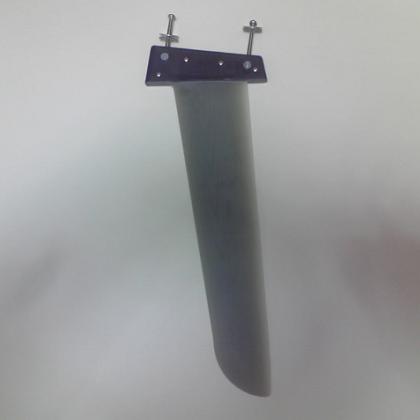

X011 |
38 |
6.7～7.9 |
28728 |
(24.0,171.3) |
8.9 |
447 |
Now Testing |
 |

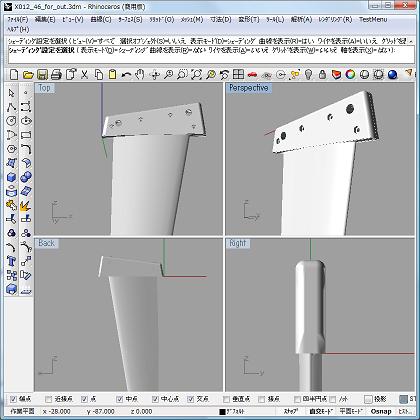

X012_46 |
46 |
8.2～9.5 |
35823 |
(21.2,191.5) |
9.5 |
529 |
Designed |
 |

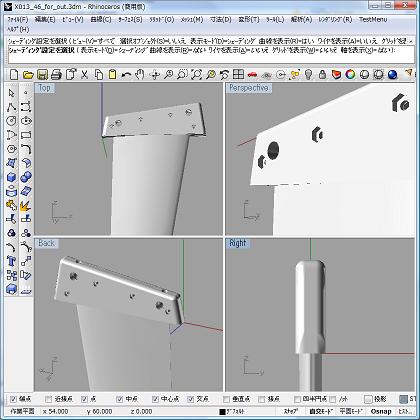

X013_46 |
46 |
8.2～9.5 |
35823 |
(21.2,191.5) |
9.5 |
529 |
Designed |
